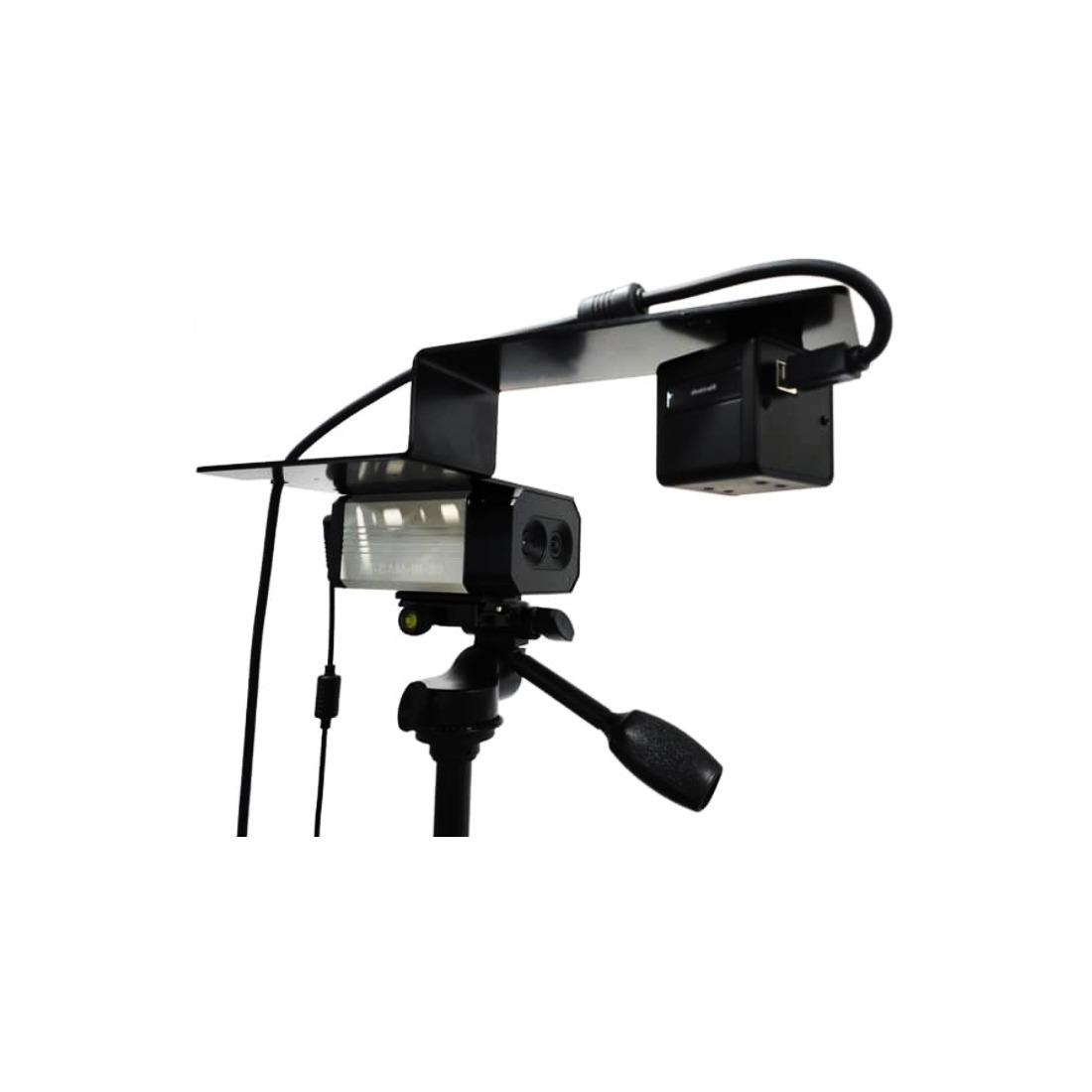

ET-CAM-IR-30 V2.0
500 in stock
The system has been specially developed for fully automated contactless fever measurement in groups of people. Due to its technical design, the system guarantees the highest possible measuring accuracy with the simplest application.
The system is equipped with a blackbody system (integrated temperature reference system) to ensure the required high level of accuracy for use in healthcare.
The facial area of several people in a group is automatically recognized by the system as they pass by and the temperature is measured. It is not necessary to stop in front of the system.
The non-contact measuring capacity is up to 10,000 people per hour at a measuring distance of up to 4m. The measurement results are displayed above the heads with temperature values in green or red in the video image at the HDMI output or in the optional PC software via a network connection.
The increased temperature of one or more people also triggers an alarm. The measurement is made in the forehead area, it is not necessary to remove the protective mask.
Technical Data
| Dual spectrum thermal imaging camera ET-CAM-IR-30 V2.0 | ||
| parameter | Specification | |
| min.lighting | 0.5 lux @ (F1.8, AGC ON) | |
| Backlight compensation | is supported | |
| Digital noise | 2D & 3D digital noise reduction | |
| Signal-to-noise ratio | ≥55dB | |
| General | IP configurations | DHCP or fixed IP address |
| Temperature units | ° Celsius / ° Fahrenheit | |
| interface | Ethernet (RJ45) | |
| HDMI | ||
| RS485 | ||
| alarm | ||
| USB | ||
| Working temperature | + 10 ° C ~ + 50 ° C （50 ° F ~ 122 ° F） | |
| Storage temperature | -40 ° C ~ + 85 ° C (-40 ° F ~ 185 ° F) | |
| Protection class | IP54 | |
| Dimensions | 129mm x 73mm x 61mm (L x W x H) | |
| Weight | 460g | |
| Attachment | 1/4 “tripod thread | |
| software | AI | Face area detection |
| Temperature measurement | automatic measurement in the facial areas, several people at the same time | |
| alarm | Alarm by camera, computer or screen | |
| Photo / video | Automatic recording in the event of an alarm or manual recording / can be switched off | |
| Display of the temperatures as overlay in the camera image above the respective head | ||
| language | English | |
| Temperature reference system | |
| Temperature measuring range | + 5 ° C ～ 50 ° C (41 ° F ~ 122 ° F） |
| Surface size | Diameter 25 mm |
| Emissivity | 0.95 ± 0.02 |
| accuracy | 0.1 ° C (0.18 ° F) |
| stability | <± 0.1 ° C (± 0.18 ° F) |
| Power supply | DC 5V / 2A |
| Working temperature | 0 ° C ～ 50 ° C (32 ° F ~ 122 ° F） |
| humidity | ≤90% |
| Dimensions | 53 x 50 x 57mm |
| Weight | 150g |
| Power consumption | 2.5W |
| EAN | 4250820807402 |
